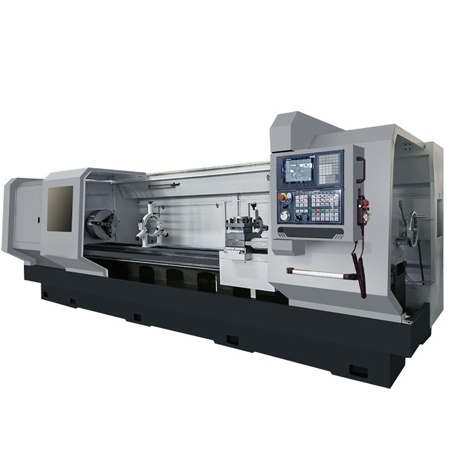

PMF 300 | CNC Heavy Duty Lathe Machine
Extra-Long Bed Series – 15 Meter Capacity
Manufacturer: PacemakerCNC
Website: www.pacemakercnc.com
I. Overview
The PMF 300 is a high-precision, heavy-duty CNC Lathe designed for large-scale industrial components. With a massive 15,000 mm distance between centers and a weight capacity of 7,000 Kgf, it is engineered for stability, longevity, and extreme accuracy in machining long shafts and heavy rotors.
II. Technical Specifications
Working Capacity
|
Feature
|
Specification
|
|
Centre Height
|
450 mm
|
|
Swing Over Bed
|
950 mm
|
|
Swing Over Cross Slide
|
570 mm
|
|
Max. Turning Diameter
|
570 mm
|
|
Admit Between Centers (ABC)
|
15,000 mm
|
|
Max. Component Weight
|
7,000 Kgf (with steadies)
|
|
Feature
|
Specification
|
|
Spindle Nose
|
A2-11
|
|
Spindle Bore
|
110 mm
|
|
Speed Range
|
4.5 – 450 RPM
|
|
Main Motor Power
|
22 kW AC Variable Speed
|
|
Feature
|
X-Axis
|
Z-Axis
|
|
Traverse
|
500 mm
|
15,000 mm
|
|
Feed Range
|
0 – 5,000 mm/min
|
0 – 2,000 mm/min
|
|
Rapid Traverse
|
5,000 mm/min
|
2,000 mm/min
|
|
Drive System
|
Precision Ball Screw
|
Heavy Duty Rack & Pinion
|
Tooling & Tailstock
- Tool Turret: 4-Way Manual Indexing Tool Post (40x40 mm shank)
- Tailstock Quill: 160 mm Diameter
- Quill Stroke: 160 mm / 300 mm (Hydraulic)
- Taper in Bore: MT6
III. Advanced Control System
The PMF 300 is powered by the Siemens 828D CNC System, featuring:
- 10.4" TFT High-Resolution Color Monitor.
- 2-Axis simultaneous control with Manual Pulse Generator (MPG).
- Panel Air Conditioner included for consistent performance in high-temperature environments.
? Chucks:
- 4-Jaw Manual Independent Chuck (Ø 630 mm)
- 3-Jaw Self-Centering Manual Chuck (Ø 500 mm)
- 3-Jaw Self-Centering Manual Chuck (Ø 630 mm)
? Support: 7 Nos. Roller Steady Rests (Ø 150-550 mm) and Rotating Centre MT6.
? Power Management: 50 KVA Ultra Isolation Transformer & 50 KVA Voltage Stabilizer.
? Waste Management: High-efficiency Coolant System with integrated Chip Conveyor.
? Spares: Comprehensive Two-Year Normal Running Spares Kit.
KEY ADVANTAGES
? Heavy-duty flat bed construction
? High torque spindle for large components
? Proven Siemens CNC control
? SKF precision spindle bearings
? Designed for PSU, Defence & Continuous Production
