Description
Function
- IP65 protection for CNC front panel and machine control panel
- Integrated CNC keyboard with mechanical keys
- Simplified Chinese or English panel layout
- 7.5" color LCD display
- USB user interface on the operator panel front
- Pulse/direction interface for feed drives
- Analog ± 10 V interface for spindle drive
- Data buffering with battery (> 3 years)
- Pre-configured system software for turning technologies
- 1 machining channel/mode group
- Up to 4 axes/spindles
- Graphically guided SINUMERIK CNC programmingand standard ISO-code programming with canned cycles
- Graphical CNC simulation
- Integrated contour computer
- Integrated PLC based on the SIMATIC S7-200command set with ladder logic programming
- Integrated/distributed PLC I/O concept with 72 digital PLC inputs and 48 digital PLC outputs
- CNC options subject to license
- Configurable user screens
- Machine maintenance tasks are accomplished byintegrated service planner
Benefits
- Compact, rugged, and maintenance-friendly operator-panel CNC with dedicated system software for turning technologies
- intelligent clamp mounting without drilling holes into the cabinet
- minimum commissioning efforts due to plug and play machine control panel connected via USB interface
- maximum performance and accuracy due to most modern CNC features
- SINUMERIK 808D start GUIDE: assists all process steps of the machine-from engineering of production, from sales to operation and programming at the push of a button
- SINUMERIK Operate Basic maximum operator convenience similar to SINUMERIK 828D and 840D sl
- SINUMERIK program GUIDE BASIC: wide range of technology cycles for turning and drilling with graphical input screens
- Manual Machine plus: easy semi-automatic machining with handwheel controlled flat-bed lathes
- Easy data transmission via USB stick
Integration

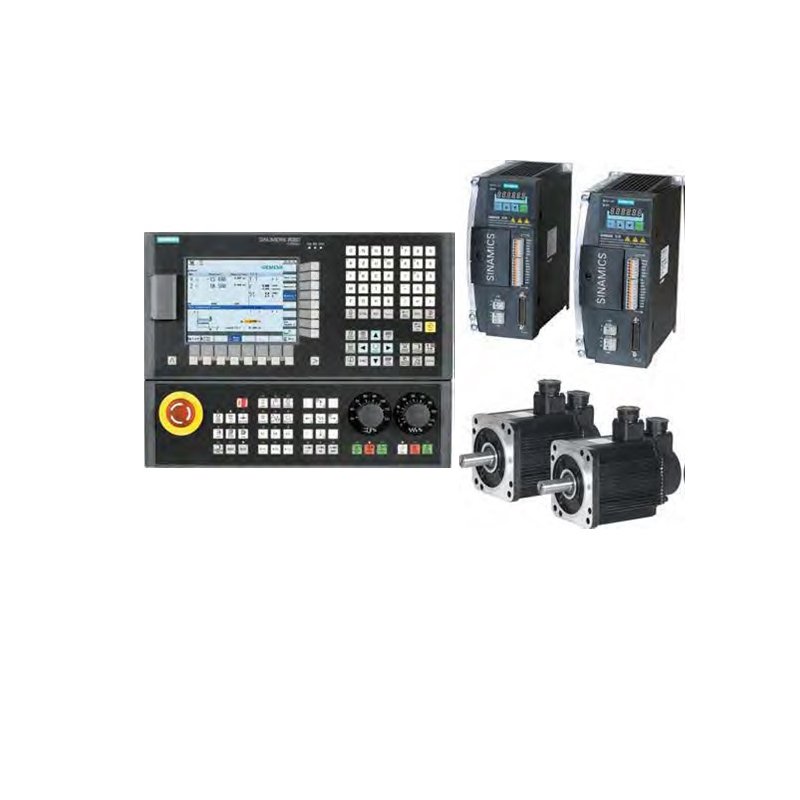

The following components can be connected to the SINUMERIK 808D turning:
- up to 2 electronic handwheels
- up to 72 digital PLC inputs and 48 digital PLC outputs
- 1 TTL direct spindle encoder
- SINUMERIK 808D MCP via USB interface
- SINAMICS V60 drive system for feed axes
- Spindle drives via ± 10V analog output
- PC via RS 232C interface
